New products for M16A (Swift Sports) will be available soon!
| Product Name | Contents | Estimated Price | |||||||||||||||||||

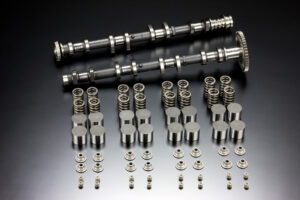

M16A High Power Profile Camshaft KIT (Prototype image) |
<KIT Contents>
*Re-profiled:standard camshafts needs to be traded in. Even though these are re-profiled camshafts of standard ones in order to offer at low prices, there is no inferior aspect in performance at all. Intake camshaft has 4 types with 9.5mm to 9.7mm lift, and exhaust camshaft has 3 types with 8.9mm to 9.1mm lift. Camshaft KIT contains inner shim KIT;standard valve springs can not be used. Adjustable cam gear is installed to the exhaust camshaft. |
¥150,000 | |||||||||||||||||||
M16A High Comp Forged Piston KIT |
Bore:85.00mm TODA head GK 86.0mm t=0.6mm ξ= 12.2:1 (Standard 11.1:1) |
¥79,000 | |||||||||||||||||||
M16A Power Liner KIT |
Bore:85.00mm (Standard 78.00mm)
A displacement can be increased from standard 1,586cc to 1,884cc by enlarging bore size. The price of Power Liner KIT contains the cost of installation and special honing. (Piston KIT is not included.) |
¥190,000 | |||||||||||||||||||
M16A High Stopper Metal Head Gasket |
Thickness:0.6mm Bore:86.0mm |
¥30,000 | |||||||||||||||||||
